Introducing a New Generation of Grades for Hard Materials and High Temperature Alloys

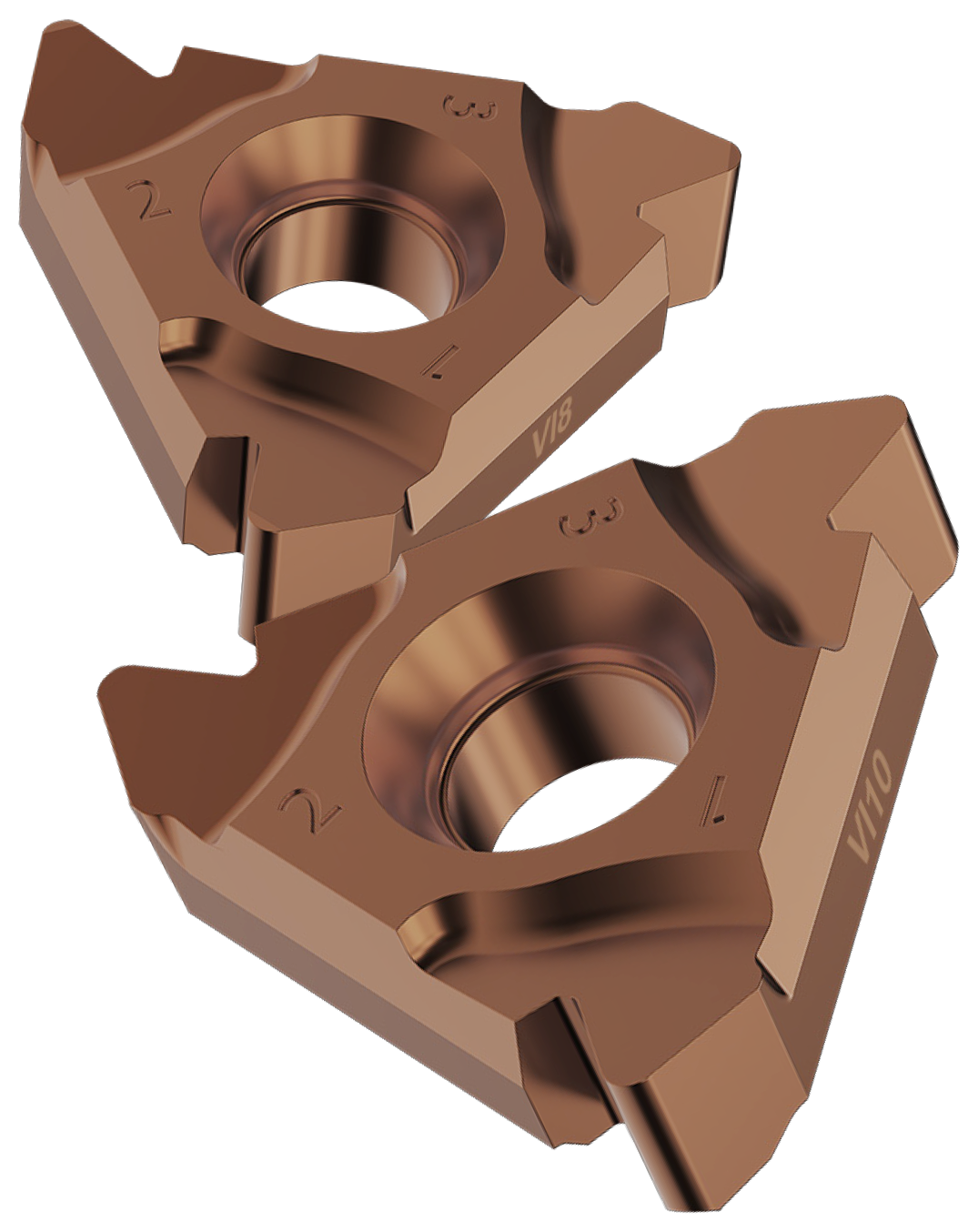

Vargus is proud to launch the Vl8 and Vl10, two new thread turning grades that have been engineered to machine a distinct range of materials.
Vl8 and Vl10 extend the MACH platform with grades matched precisely to their target material groups, dedicated performance where it matters most.
• MACH inserts IC3/8" and ICl/2", external and internal.
• Additional geometries and profiles available upon request.

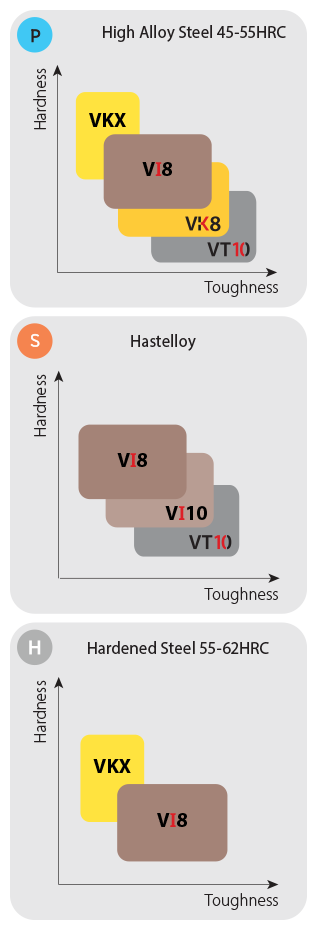

PVD TiAlSiN coating and geometry, specifically designed for extremely hard materials up to 62 HRC and high temperature alloys.
• Up to 62 HRC
• ldeal for interruptedcuts
• PVD TiAlSiN coating

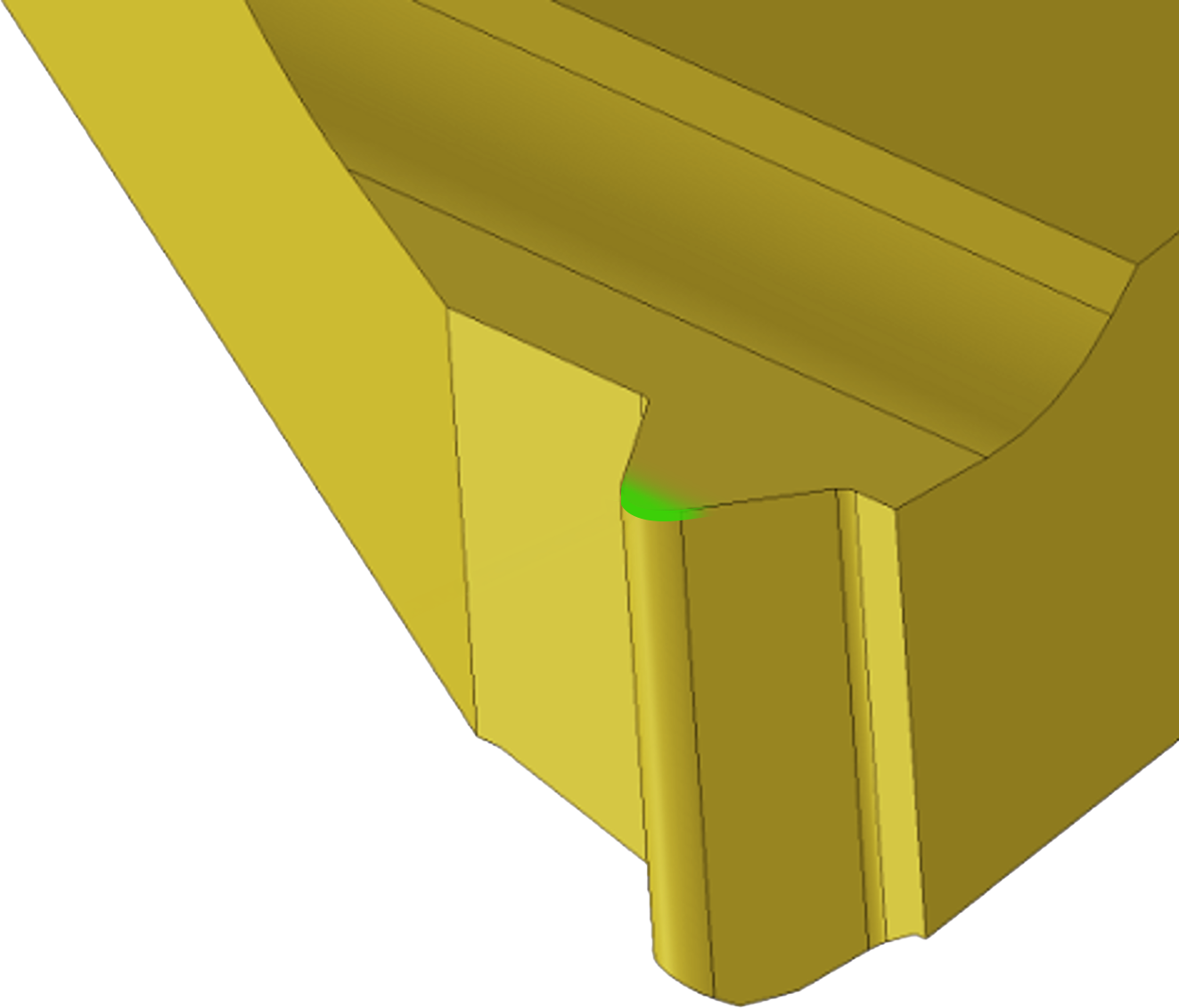

• Negative rake angle

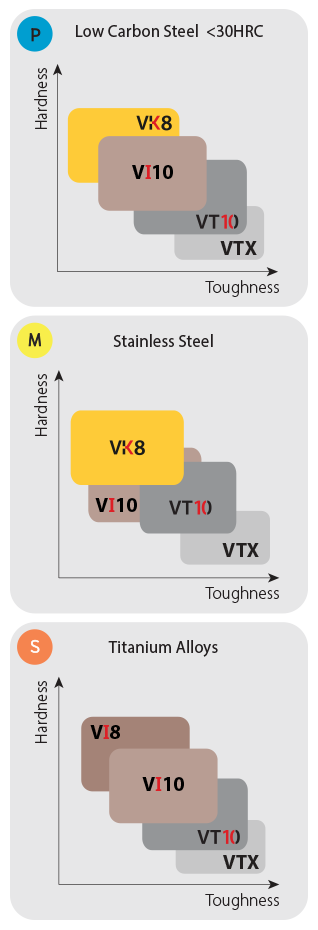

PVD TiAlSiN coating and geometry, specifically designed for low carbon steel and Titanium alloys.
• Sharp edge preparation
• Cutting edge surfacetreatment
• PVD TiAlSiN coating

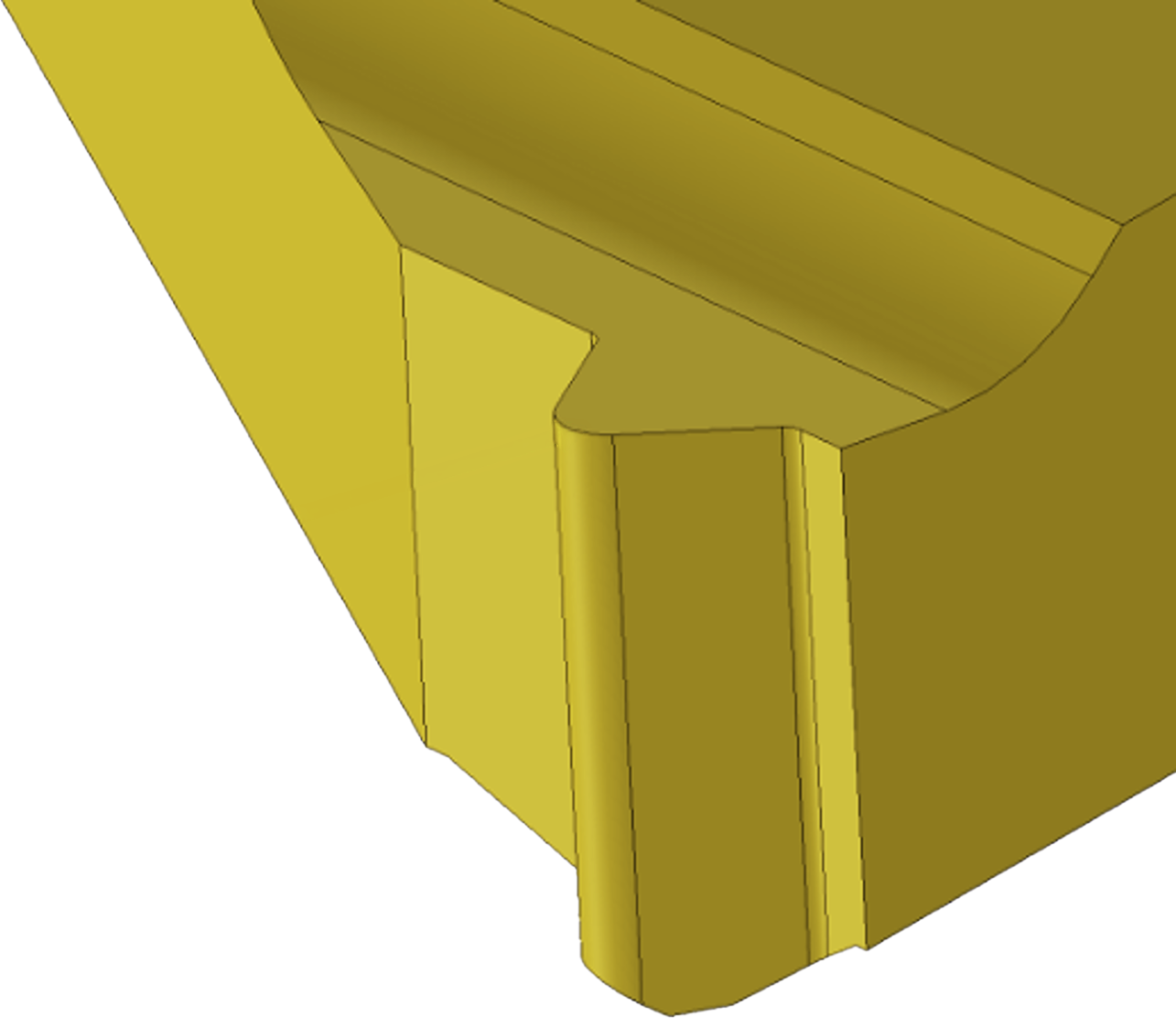

• Neutral rake angle

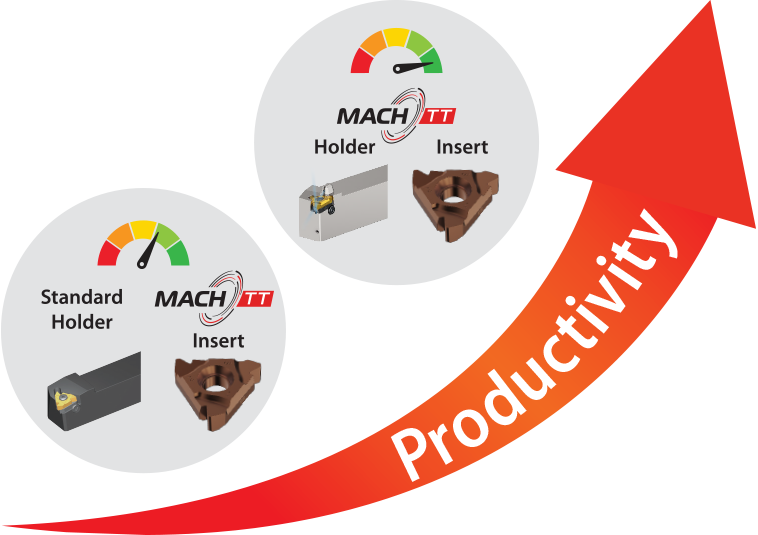

Increase Versatility & Productivity
The MACH TT system was designed for complete versatility.
It works best with a dedicated MACH TT holder, but at the same time MACH TT inserts can be placed in ANY standard insert pocket, still providing great performance.
Material: SAE 4340 Steel 55 HRC
Insert: 3DTER1.5ISOVI8
Cutting Data:
Vc [m/min]: 40
No. of Passes: 8
Type of Pass: Modified Voliume Chip
Material: Titanium Grade 5
Insert: 3DTER1.5ISOETVI10
Cutting Data:
Vc [m/min]: 80
No. of Passes: 7
Type of Pass: Modified Voliume Chip
