Groovex: V-ISO Turn
ISO Turning Solutions for Swiss and Medical Applications
The V-ISO Turn line introduces ISO-Standard external turning tools designed to compliment VARGUS’s miniature and medical machining solutions.
In addition to its unique geometry, the V-ISO Turn features innovative substrate and grades, specifically tailored for material groups commonly used in the miniature and medical industry.

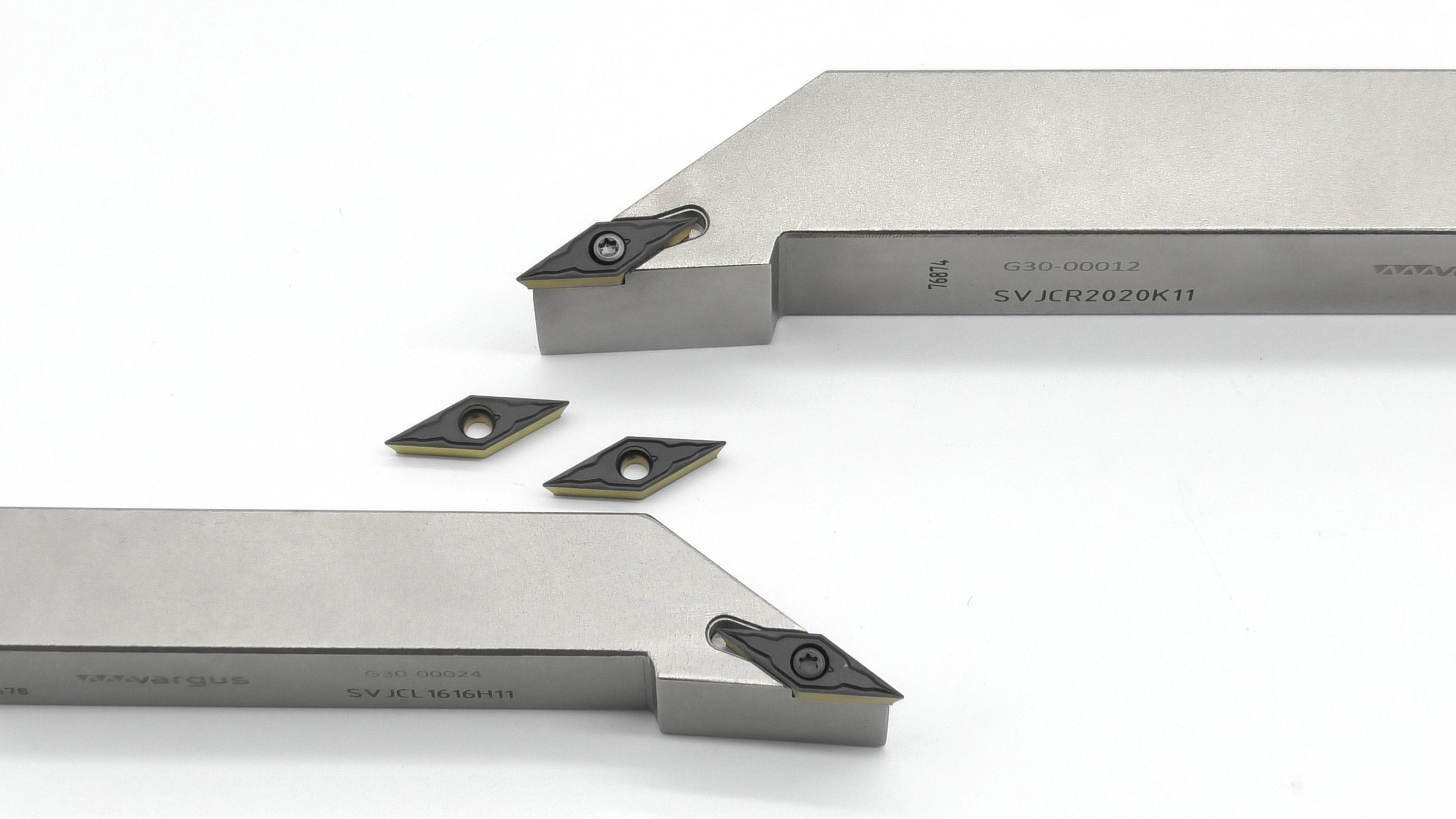

V-ISO Turn holder selection
Allows back turning or cutting under shoulders
Insert orientation allows cutting in reverse direction
Standard for roughing and finishing
Allows for shoulder turning without rubbing
Neutral geometry for facing and turning
Simple and effective for straight turning
Ideal for general turning
Good for reducing tool pressure on thin walls
More aggressive angle for profile turning
Excellent clearance in tight geometries
Insert Shapes: Positive insert profiles
Chip Breakers
MP / MM - Medium
- Most applications – general purpose
- Medium to light roughing operations
- Wide range of cutting depths and feed rates
FF / MF / FP - Finishing
- Small cutting depths and low feed rates
- Low cutting forces
V-ISO Turn Grades
VH8 - CVD
A highly dense and hard nanostructured coating base material, including a thick CVD grade (around 20 micron) with improved wear resistance, providing superior performance during high-speed turning operations. First choice for Steel. Only pressed inserts.
VH10 - PVD
A micro-grain substrate combined with a thin optimized nanostructure PVD coating with excellent heat dissipation solution for general turning of stainless steel and Heat Resistant Super Alloys (HRSA). First choice for Stainless Steel.
V07 - Uncoated
Uncoated carbide micro-grain grade, characterized by excellent resistance to abrasive wear and toughness, making it suitable for a wide range of machining operations. Very sharp around 25 degrees. Specifically tailored for Aluminum alloys. Can be used for other Non-Ferrous materials as well (copper for example).
VH7 - PVD
A hard micro-grain substrate combined with a thin optimized nanostructure PVD coating (around 1.5 micron) with excellent heat dissipation. First choice for Heat Resistant Super Alloys (HRSA) and Stainless Steel.
